Shop online for a wide selection of Thermo Scientific MaxQ 4000 Benchtop Orbital Shakers Combine the convenience of a benchtop design with orbital shaking technology. Barnstead/Lab-Line Universal Platforms for Shakers, Thermo Scientific. Barnstead/Lab-Line MaxQ™ 2000. Barnstead/Lab-Line MaxQ™ 3000, 5000.
This Barnstead MaxQ5000 floor model incubated/refrigerated shaker is a workhorse in the industry. It is ideal for solubility studies, extraction procedures, cell cultures, general mixing, hybridization, bacterial suspensions, plant growth, staining, destaining, and washing procedures. This unit was retrieved from a working laboratory and is in excellent condition. It is being offered for thousands less than the cost of a new unit and comes with a User's manual and 60 day warranty!
Features include:. A large slanted viewing window allowing observation of flask contents without opening the door. A foot pedal opens the door automatically, providing hands-free operation. The door features a flexible gasket that seals tightly against the cabinet. Triple eccentric drive that enables continuous 24-hour operation, handles heavier loads, and provides smooth uniform agitation of full or unbalanced loads even at high speeds. Monitor and control chamber temperature with PID temperature controller.
Visual, user-adjustable overtemperature safety signal with independent thermostat that provides additional backup by controlling the heat if the main controller fails. Powder-coated, cold-rolled steel exterior. ABS (acrylobutyl styrene) housing that surrounds and protects the polyester control panel. Safety interlock that stops platform motion when the lid is open. Easy-access drain system that offers convenience in draining and disinfecting the system.
Built-in drip pan under the platform to contain spills and protect the chamber from damage. Retractable foot casters and access ports on the side of the cabinet for thermocouples, gassing manifolds, or sensors. Variable speed control that is adjustable with up/down arrows. Solid-state, brushless DC motor.

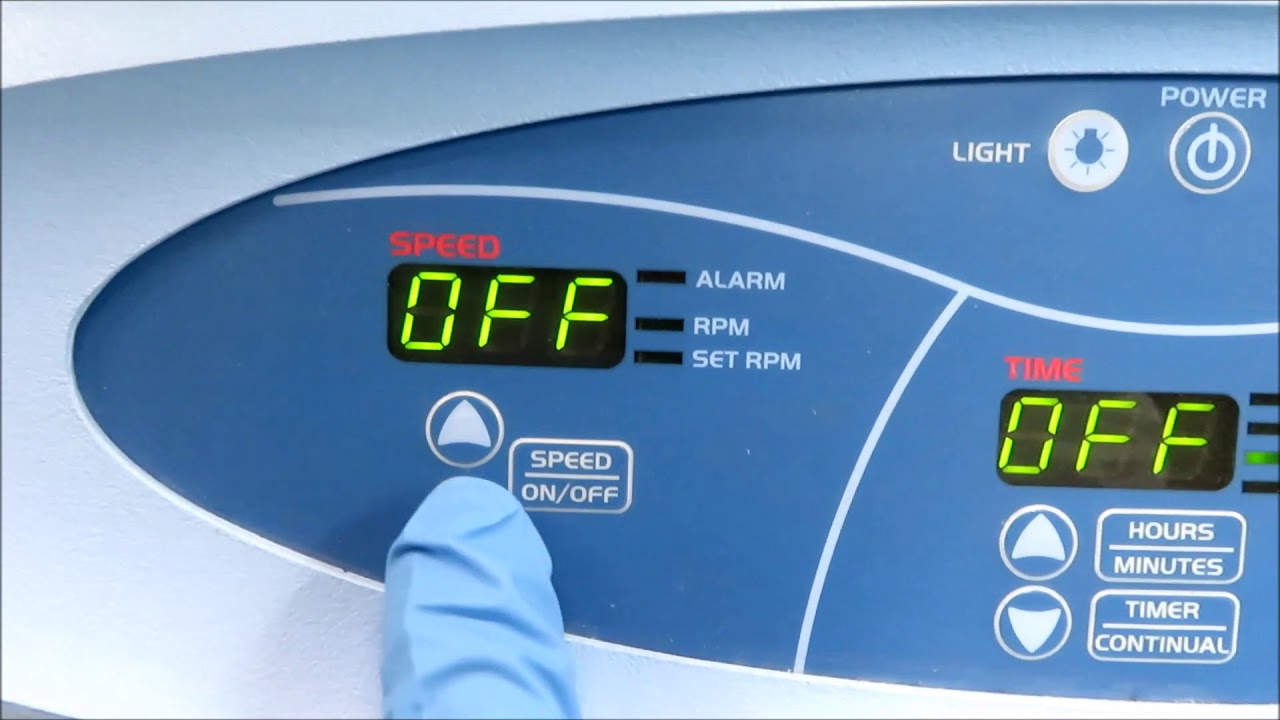

Separate LED displays for temperature, speed, and operating time. Speed is adjustable in 1rpm increments. Shaker shutdown, audible and visual signals indicate over/under speed deviations ±10% of setpoint, and temperature deviations of ±1°C of setpoint. Timer that allows for continuous operation or timed shaking from 0.1–999 minutes or from 0.1–999 hours.
Soft start feature eliminates splashing of vessel contents and wetting of flask closure, and helps prevent sudden starts and stops. Setpoint retention retains parameters during power failure and restarts unit automatically after power is restored. RS-232 interface allows remote monitoring of temperature, speed, and time. Built-in recorder jack allows output to chart recorder for a permanent record of temperature. Specifications:. UL and C-UL listed.
Barnstead Maxq 5000
Barnstead Maxq 5000 Manual
CE certified. Electrical: 120V; 50-60 Hz. Speed range: 15-500 rpm. Temp range: 15 deg C below ambient to 60 deg C. Ship weight: 512 lbs.
